DC5V 1/2" Ball Valve Electric Motor Actuator 9NM For HVAC Automation

Product Categories
Shanghai Runpaiq Technology Co., Ltd.
Contact Now

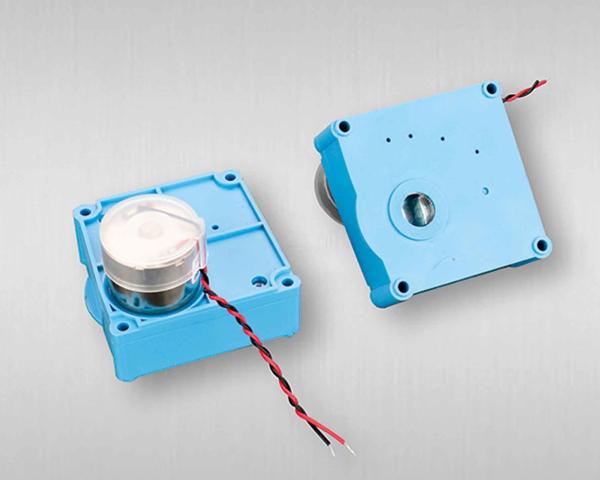

DC5V 1/2" Ball Valve Electric Motor Actuator 9NM For HVAC Automation

  • 1
  • 2

Brand Name : Runpaq

Model Number : K31

Certification : NONE

Place of Origin : China

MOQ : 1000 pieces

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 200000 sets/month

Delivery Time : 15-21 days

Packaging Details : carton

Normal voltage : Lithium battery 2.5VDC-5V DC

Application : open / close brass ball valve

Empty run current : <25 mA (23 C)

Current at full loading : about 550 mA (motor #320)

Motor : DC2.5V-DC5V

Torque : 1.8 NM (2000:1)

Open / close time : < 10 S (2000:1)

Reduction ratio : 2000 : 1 (For DN15 - 20 ball valve);

Model : K31

Contact Now

DC5V electric motor actuator for 1/2" two way brass ball valve,

Product description

The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close. The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio.


Technical data-Model K31
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <550 mA (motor #320)
4. Torque: >1.8 NM (2000:1)
5. Open/close time: <10 S (2000:1)
6. Velocity reduction ratio: for DN15, DN20 ball valve (2000:1)
7. Protection: 0

Wiring definition

No Color of wire Definition
4 black positive (+)
5 red negative (-)

Production overview
DC5V 1/2" Ball Valve Electric Motor Actuator 9NM For HVAC AutomationDC5V 1/2" Ball Valve Electric Motor Actuator 9NM For HVAC AutomationDC5V 1/2" Ball Valve Electric Motor Actuator 9NM For HVAC Automation
